Lamella Sludge Transfer Strategies in Modern Mining Operations

Understanding Lamella Sludge and Its Operational Hurdles

In modern mining industries, particularly within seawater desalination units, the settling of fine particles is accelerated using lamella clarifier technology. This process is vital to ensure a consistent supply of clean water for mining operations while simultaneously treating the generated residues. The output of this process results in the separation of fluids into two primary phases: recycled clean water and a concentrated solid byproduct known as Lamella Sludge.

This mixture contains fine residues and possesses highly abrasive properties, requiring extreme precision for its transfer to subsequent processing stages. The next phases which include filtration, liquid recovery, and pH neutralization demand a stable and measured flow before the fluid can finally be safely released back into the environment. The greatest challenge lies in the nature of the fluid itself, which necessitates high-capability industrial pump solutions capable of overcoming extreme viscosity, high abrasiveness, and varying solid content without compromising stability or energy efficiency.

Technical Challenges in Pumping Mining Sludge

Frequently, conventional pumps are not engineered to withstand the complex characteristics of mining sludge. Failure to select the appropriate pumping system can lead to several serious technical issues, including:

• Extreme and Fluctuating Viscosity: This inhibits smooth flow within the piping system.
• High Concentrations of Fine Solids: This increases the risk of clogging and causes premature wear on internal pump components.
• Abrasive and Chemically Reactive Properties: Particles within the sludge can erode pump materials, especially when triggered by the use of specific chemicals.
• Requirement for Precise, Stable Flow: Consistency is essential to maintain reliable results during the filtration and final treatment stages.

Improper pumping system selection leads not only to blockages and high energy consumption but also results in significant operational downtime, which is highly detrimental to mining companies. Consequently, specific solutions tailored for the mining industry are required.

Strategic Solution: NEMO® Progressing Cavity Pump by NETZSCH

To address these formidable challenges, the NEMO® Progressing Cavity Pump stands as a premier solution, globally proven in the most demanding heavy industrial applications, including sludge pumping in harsh mining environments. This pump operates on the positive displacement principle, allowing it to move extreme fluids consistently with a stable flow and no loss in operational performance.

In addition to technical reliability, another significant advantage is its higher energy efficiency compared to conventional centrifugal pumps. Because the flow is generated through the precisely controlled movement of the Rotorrotor,Rotors,rotorsrotor and stator, power requirements can be minimized without sacrificing operational stability.

Technological Innovation for Maintenance Efficiency (TCO)

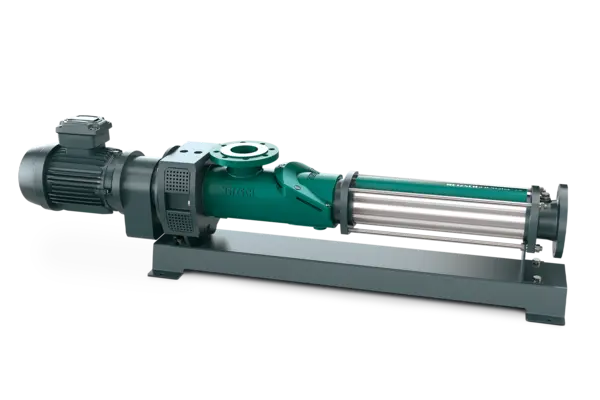

NETZSCH Pumps & Systems understands that in the mining industry, uptime is everything. Therefore, we have introduced advanced technologies such as the iFD-Stator® 2.0. This innovation allows operators to replace the stator elastomer without disassembling the entire pump unit. Consequently, the service process becomes significantly faster, operational costs are reduced, and downtime is minimized through our Technical Service support.

Furthermore, the use of supporting accessories and advanced control systems facilitates dynamic flow rate adjustments. This technology provides operators with full flexibility to adjust pump performance according to the specific needs of ongoing waste treatment processes, supported by a continuous pump modernization system.

Operational Impact and Long-Term Advantages

With a robust design and reliable performance, the utilization of NETZSCH products for Lamella Sludge transfer provides tangible, sustainable benefits:

• A significantly more stable and smoother transfer flow throughout the entire system.
• Substantial energy savings and a reduction in overall operational costs.
• High durability with minimal maintenance and service requirements, even under extreme working conditions.

Enhanced operational productivity and system reliability are crucial factors in the harsh and challenging mining environment. Partnering with NETZSCH provides more than just a pump; it offers professional technical support, responsive after-sales service, and comprehensive service contracts that support your daily operational continuity.
