Dry Sludge Transfer Solutions: NEMO® BF Hopper Pump Innovation for Australia
Wastewater treatment processes in Australia are facing increasing demands for higher operational efficiency, particularly in handling dewatered sludge. This byproduct of the dewatering process often has a solid, non-flowing consistency that is notoriously difficult to transport through conventional piping systems. At a major wastewater treatment facility in Australia, moving sludge cakes directly from a screw press posed a significant challenge due to the high risks of clogging and "bridging" a phenomenon where solid media forms a hollow arch over the pump inlet. To ensure seamless sludge distribution to storage containers, NETZSCH Pumps & Systems introduced the NEMO® BF Hopper Pump integrated with aBP-Module® technology. This industrial solution is specifically engineered to maximize pump chamber charging for highly viscous media, enabling the continuous transfer of dry sludge at high tonnage and pressures exceeding 10 bar without mechanical interruptions.
Individual Consulting
Technical Challenges of High-Solid Sludge Cake Handling
In the modern waste treatment chain, the dewatering stage using a screw press is designed to significantly reduce waste volume. However, the resulting "sludge cake" possesses challenging physical characteristics: it is extremely viscous, non-fluid, and prone to sticking. The primary hurdle in regional Australian facilities is ensuring this solid cake enters the pump consistently.
When sludge falls from the screw press into a standard hopper, it often accumulates and hardens at the edges, creating a "bridge" that blocks the flow into the pump's rotor and stator. This leads to dry running, which can cause catastrophic damage to pump components within minutes.
Furthermore, transferring this dense material over long distances and varying elevations to reach final disposal containers requires a pump that can maintain high discharge pressure without losing volumetric efficiency. For environmental facility managers in the Oceania region, achieving a reliable, automated transfer system is critical to maintaining 24/7 operations and meeting strict environmental compliance standards.
Strategic Solution: NEMO® BF with aBP-Module® Technology

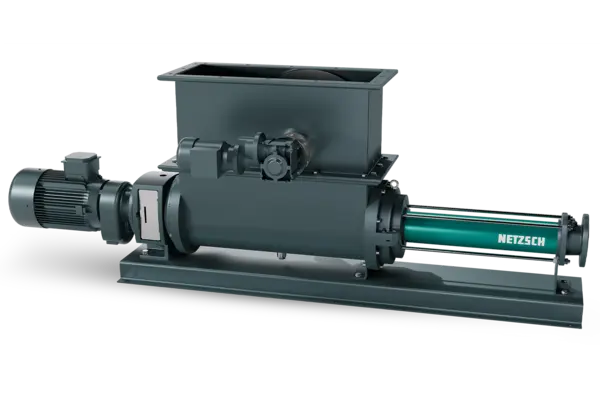

To master these extreme conditions, NETZSCH Pumps & Systems implemented the NEMO® BF, a progressing cavity pump designed with a wide, rectangular hopper and a specialized feeding screw. The key differentiator in this application is the inclusion of the aBP-Module® (Asynchronous Bridge Preventer). This patented technology features two internal shafts with integrated paddles that move in an asynchronous motion to continuously break up sludge formations and push them down into the pump's elements.
This integrated system offers several technological advantages:
- Elimination of Bridging: The aBP-Module® ensures that the sludge cake is constantly agitated and fed into the conveyor screw, preventing any void spaces or blockages in the hopper.
- High-Pressure Performance: Capable of pushing dry sludge through long pipeline runs at pressures above 10 bar, ensuring the material reaches the designated storage area regardless of facility layout.
- Variable Speed Control: The system can be synchronized with the output speed of the screw press via a Variable Frequency Drive (VFD), ensuring a balanced and continuous process flow.
- Robust Construction: Built with wear-resistant materials to handle the abrasive nature of treated sludge, significantly extending the intervals between service and maintenance.
Operational Gains and Economic Impact

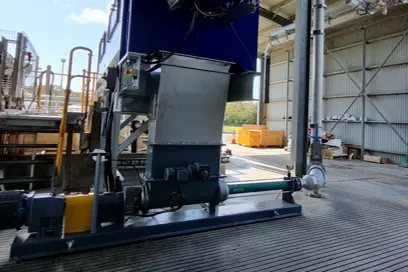

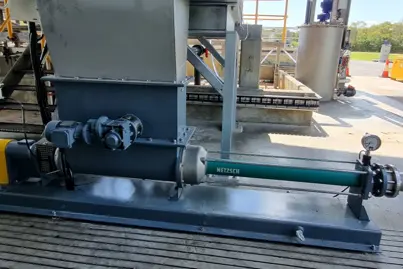

The deployment of the NEMO® BF in Australia has yielded measurable improvements in facility productivity. By automating the sludge transfer process, the facility successfully eliminated the need for manual monitoring and intervention at the hopper area. This not only improves occupational health and safety (OHS) by reducing worker exposure to waste but also significantly lowers the Total Cost of Ownership (TCO) through reduced downtime.
Key benefits realized include:
- Continuous Operations: Reliable 24/7 transfer even with high-tonnage sludge output.
- Maintenance Efficiency: Reduced risk of dry running and mechanical failure due to the "Bridge Preventer" technology.
- Automated Material Distribution: Integration with sensors ensures storage containers are filled optimally and proportionally.
- Regional Technical Support: NETZSCH Australia provides rapid access to genuine spare parts and responsive technical assistance, ensuring long-term system integrity.
Setting New Standards for Sludge Transfer in Oceania
The success of this implementation in Australia sets a new benchmark for the environmental sector across the Oceania region. By adopting modern industrial pumps specifically designed for solid media, waste treatment facilities can increase their processing capacity without fear of technical bottlenecks in the transfer line. NETZSCH Pumps & Systems remains a leading partner in delivering reliable pumping innovations and comprehensive maintenance services that support sustainable and efficient industrial operations for the future.
