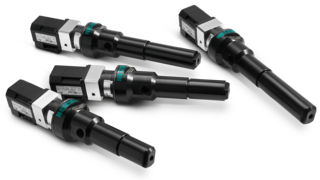

NEMO® C.Pro Metering Pump Made of Synthetic Materials

• Constant and nearly pulsation-free metering
• Metering in proportion to rotation speed
• Large metering range
• Gentle product conveyance

1 Rotating unit
A jointless single-part rotating unit made of maintenance-free plastic. For conveying abrasive or non-lubricating products, the C.Pro can be equipped with a rotor chromed in high-grade steel.

2 Stator
The C.Pro Pump comes fitted as standard with an iFD-Stator^®. The stator consists of a reusable stator housing with a polygonal profile and an elastomer stator core. Some advantages of this new technology include low breakaway torque, higher efficiency, increased operating life, simple and quick replacement, and mono-material disposal.

3 Mechanical seal and housing
The crevice-free mechanical seal is positioned in the product flow, ensuring permanent flushing by the product and preventing the sedimentation of solid materials. Comes standard with a fully encapsulated single-acting bi-directional rubber boot seal and anti-friction surfaces made of solid SiC.

4 Suction housing
The housing is made of abrasion-proof, highly resistant polyurethane. The universal flange with nominal width DN20 PN16 to DIN and ¾" to ANSI B16,5 150 LBS makes installation and removal from the plant easy.

5 Stator and discharge housing
The connection is made of abrasion-proof, highly resistant polyurethane. Again the universal flange with nominal width DN20 PN16 to DIN and ¾" to ANSI B16,5 150 LBS allows easy installation and removal from the plant.

6 Drive
Comes standard with a speed-controlled six-pole three-phase motor and frequency converter for control panel mounting. Optionally also available with six-pole three-phase motor complete with cooling fan and integrated frequency converter for manual speed control via integrated potentiometer or control by a 4-20 mA/2-10 V signal.

Further sizes and technical data on request.
